The Scale Shipyard / Running Gear / Custom Shaft Sets from Scale Shipyard
These propeller shaft sets are hand crafted from brass and steel. Propeller shafts are brass with steel cores (stainless steel is available at additional cost). We make our shafts with a scale amount of shaft exposure, as on the real ship. This can reduce drag on your shaft which increases running time on your models, as well as looking better.
Stern tubes are made of brass with a bushing installed. The outboard ends are shaped in a prototypical manner using our library of reference material for the various classes of ships.
Struts are fabricated from solid brass bar stock for strength and longevity. The strut arms are fitted into milled slots on the strut barrel and then silver soldered into place. The strut arms are shaped to look prototypical and are tapered on the edges.
These shaft sets will enhance any working or static model. If you don't have the time or equipment to fabricate your own, you will find The Scale Shipyard is ready to help with these fine examples of craftsmanship.
Please check with us before ordering - these are custom fabricated and can take extended amounts of time to finish.
All shaft sets are in 1/96 scale
To order, the part number begins with (s)and then the hull number
| Part Number | Description | Price | Photo |
| SDD-348 | 2 Shafts, 2 Stern Tubes,2 Main Struts | 189.00 | |
| SDD-358 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 | |
| SDD-381 | 2 Shafts, 2 Stern Tubes,2 Main Struts | 189.00 | |
| SDD-380 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 | |
| SDD-397 | 2 Shafts, 2 Stern Tubes,2 Main Struts | 189.00 | |
| SDD-409 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 |  |
| SDD-420 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 | |

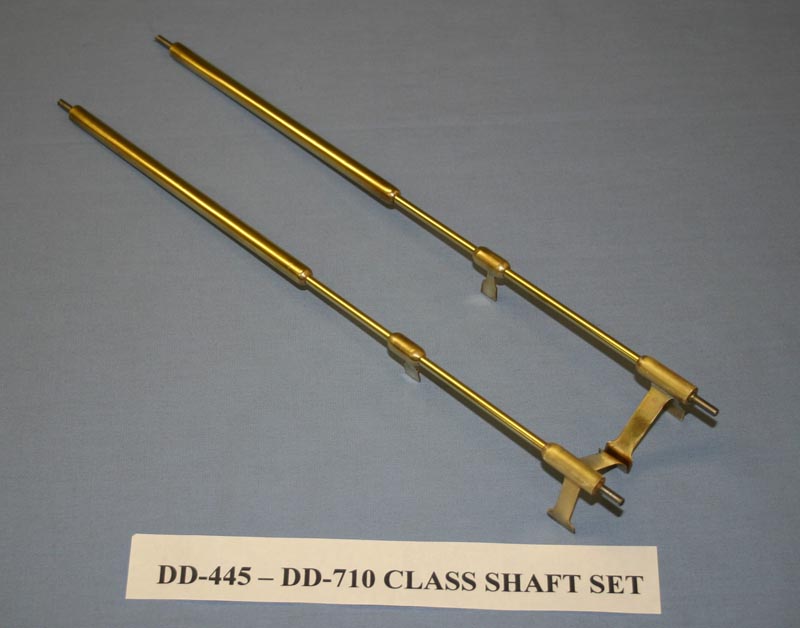

| SDD-445 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 | |
| SDD-692 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 | |
| SDD-710 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 | |
| SDE-224 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 | |
| SDE-635 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 | |
| SDE-413 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 | |
| SDE-766 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 199.00 | |
| SDDG-2 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 249.00 | |
| SDDG-24 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 249.00 | |
| SDLG-6/DDG-40 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 259.00 | |
| SDD-946 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 249.00 | |
| SDD-963 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 379.00 |  |
| SDDG-993 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 379.00 | |

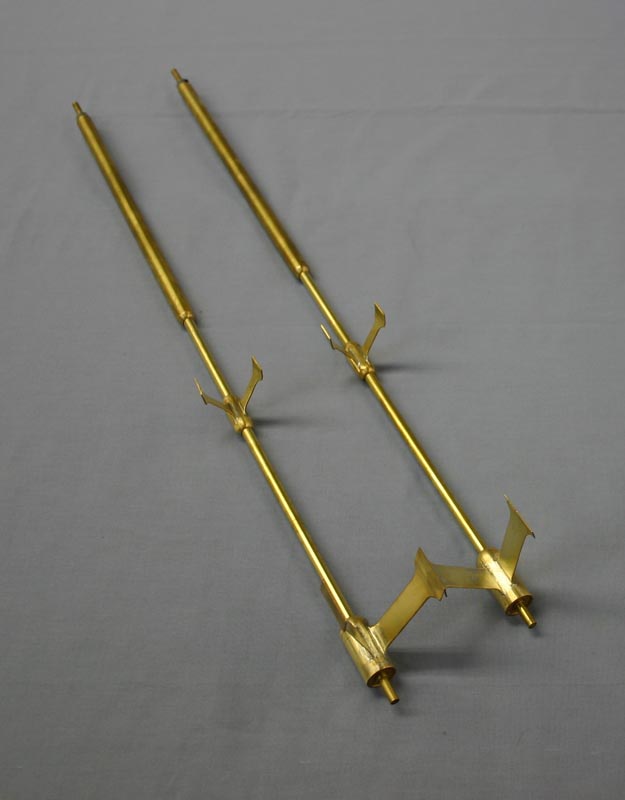

| SCG-47 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 379.00 |
|
| SDDG-51 | 2 Shafts, 2 Stern Tubes,2 Main Struts | 359.00 | |
| SCA-26 | 4 Shafts, 4 Stern Tubes, 4 Main Struts, 2 Intermediate Struts | 429.00 | |
| SCA-35 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 2 Intermediate Struts | 429.00 | |
| SCL-40 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 4 Intermediate Struts | 449.00 | |
| SCA-45 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 4 Intermediate Struts | 449.00 | |

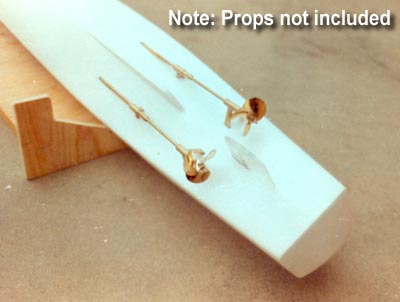

| SCL-51 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 339.00 | |
| SCL-95 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 339.00 | |
| SCL-55 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 4 Intermediate Struts | 449.00 | |

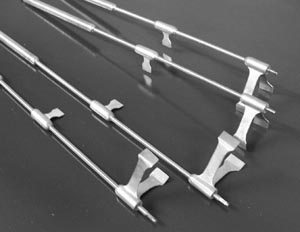

| SCA-68 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 4 Intermediate Struts | 449.00 |  |
| SCA-72 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 4 Intermediate Struts | 449.00 | |
| SCLG-5 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 4 Intermediate Struts | 379.00 | |
| SCG-16 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 349.00 | |
| SCG-26 | 2 Shafts, 2 Stern Tubes,2 Main Struts, 2 Intermediate Struts | 349.00 | |

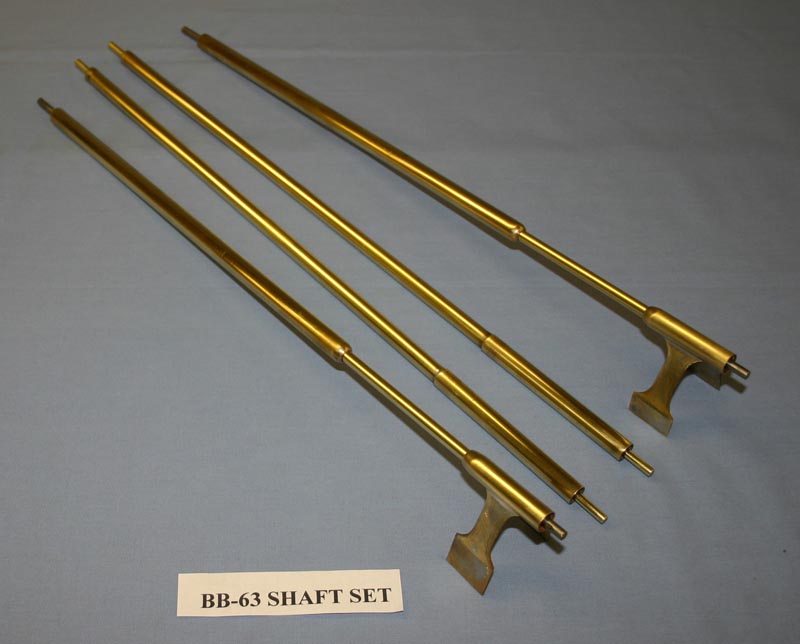

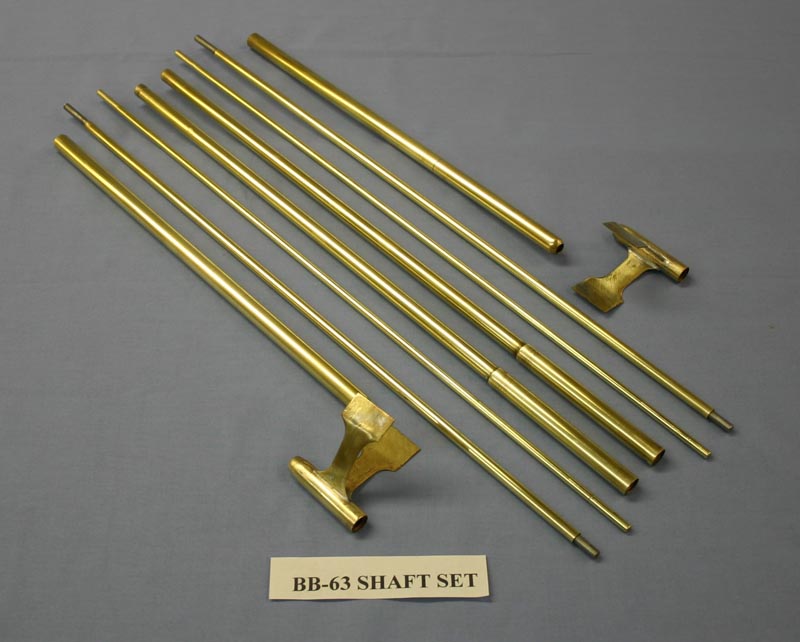

| SBB-39 | 4 Shafts, 4 Stern Tubes,4 Main Struts | 399.00 | |
| SBB-40 | 4 Shafts, 4 Stern Tubes,4 Main Struts | 399.00 | |
| SBB-43 | 4 Shafts, 4 Stern Tubes,4 Main Struts | 399.00 | |
| SBB-45 | 4 Shafts, 4 Stern Tubes,4 Main Struts | 399.00 | |
| SBB-55 | 4 Shafts, 4 Stern Tubes, 2 Main Struts | 399.00 | |
| SBB-57 | 4 Shafts, 4 Stern Tubes,4 Main Struts | 399.00 | |
| SBB-61 | 4 Shafts, 4 Stern Tubes,4 Main Struts | 399.00 |
 |
| SCV-6 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 4 Intermediate Struts | 459.00 | |
| SCV-9 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 4 Intermediate Struts | 459.00 | |
| SCV-19 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 4 Intermediate Struts | 459.00 | |
| SCVN-68 | 4 Shafts, 4 Stern Tubes,4 Main Struts, 4 Intermediate Struts | 745.00 | |
| SFFG-1 | 1 Shaft. 1 Stern Tube, 1 Main Strut | 189.00 | |
| SFFG-7 | 1 Shaft. 1 Stern Tube, 1 Main Strut | 189.00 | |
| SFF-1040 | 1 Shaft. 1 Stern Tube, 1 Main Strut | 189.00 | |
| SFF-1052 | 1 Shaft. 1 Stern Tube, 1 Main Strut | 189.00 | |
| Shaft / Tube only | We can custom make any shaft and tube combination, call for quote |
